Mini Control Control Panel

SKU: AT0010
Category: Electrical Components
Manufacturers: AUTOTERM

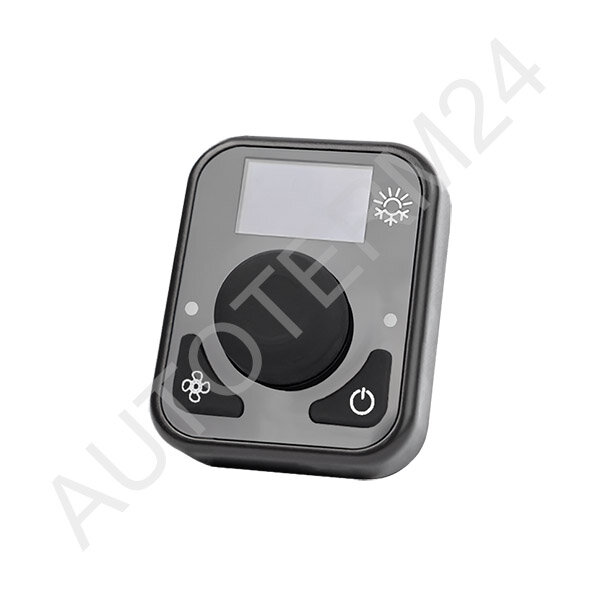

Mini Control Panel – Compact and easy-to-use controller for AUTOTERM Air and Flow parking heaters. The control unit features a rotary knob and a small display for intuitive adjustment of different heating modes. Depending on whether an external temperature sensor is connected, various operating modes are available, such as Power Mode, temperature control, ventilation mode, or pre-heating functions. Thanks to its compact dimensions (48 × 38 × 22 mm), the Mini Control is ideal for space-saving installation in vehicles.

57,00 €

incl. 19% VAT , plus

Available immediately
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

Description

Mini Control Panel – Compact Control for AUTOTERM Air & Flow Heaters

The Mini Control Panel is an easy-to-use control unit for AUTOTERM parking heaters from the Air and Flow series. The compact control panel features a rotary knob and a small display for intuitive adjustment of the heating modes – ideal for users who prefer a practical and clear control unit without extensive additional functions.

Product Features

Simple and user-friendly operation with rotary knob and display
Supports different operating modes depending on the connection of an external temperature sensor
Suitable for AUTOTERM Air and Flow parking heaters
Compact dimensions: approx. 48 × 38 × 22 mm

Functions & Operating Modes

Without external temperature sensor

Power Mode: The heater runs continuously at a preset power level.
Ventilation Mode: Air circulation only, without heating function.

With external temperature sensor

Temperature Mode: The heater reduces its heating power once the set temperature is reached and switches off if the temperature exceeds the set value.
Heat + Ventilation: Automatic heating followed by ventilation when the temperature exceeds the target value.
Pre-Heating Mode (Flow series): Preheating time adjustable from 30 minutes up to 8 hours.
Auxiliary Mode (Flow series): Supports engine preheating during vehicle start (only certain Flow 14D models).

Technical Data

Dimensions: 48 × 38 × 22 mm
Note: An external temperature sensor is required for full functionality in Power and Ventilation Mode.

The Mini Control Panel is the ideal solution for users looking for a compact, reliable, and easy-to-understand control unit for their Autoterm parking heater.

Item information	Value
Item weight:	0,05 kg
